SEG-P Properties: Line / Ribbon

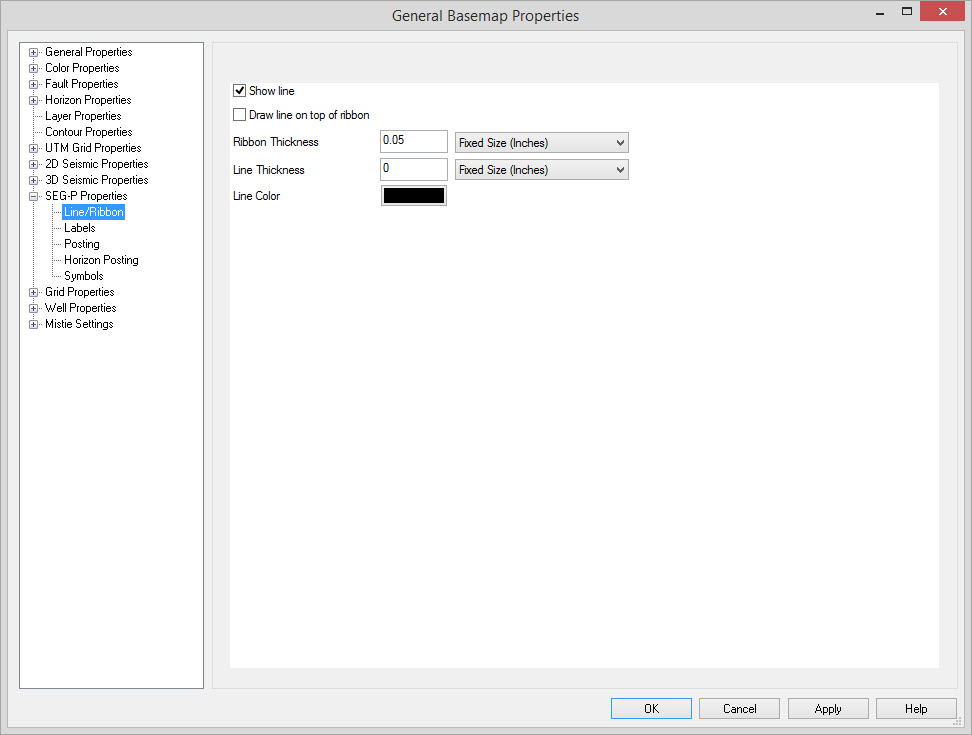

Use this page to customize the appearance of SEG-P lines and their
horizons on the map.
Enable Line
Show Line: Shows the line for SEG-P seismic
lines.
Line Parameters
Draw line on top of ribbon: If selected,
when a horizon ribbon is being displayed for a line, the survey line is
shown. If turned off, horizon ribbons will hide the survey line.
Ribbon Thickness: Specifies how thick horizon ribbons should be shown on SEG-P seismic lines.
Line Thickness: Specifies the line width to display the SEG-P line with. Note: For the fastest drawing speed set the thickness to zero.
Line Color: Specifies the color to display the SEG-P line with.
Ribbon Thickness: Specifies how thick horizon ribbons should be shown on SEG-P seismic lines.
Line Thickness: Specifies the line width to display the SEG-P line with. Note: For the fastest drawing speed set the thickness to zero.
Line Color: Specifies the color to display the SEG-P line with.
Note: Fixed sized objects will remain the same regardless of the map scale. Variable sized objects will change size with the map scale.
